LED Lighting Vision System Peripheral Equipment CA-D Series

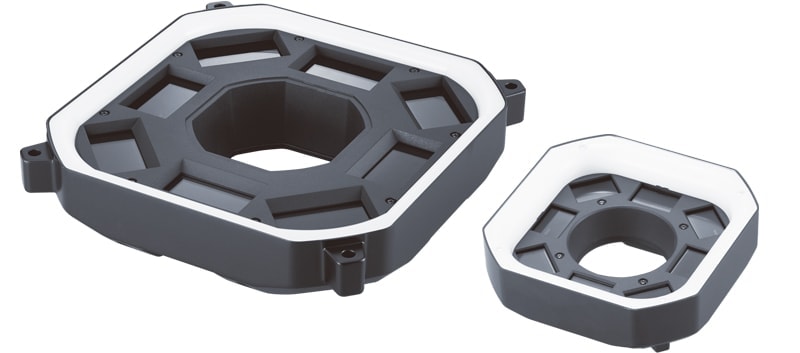

Pattern Projection Lights Uses 8 built-in light projectors to reduce dead zones.
CA-DQPxX

Built-in dedicated illumination control circuit

3D inspection lighting

Three-dimensional imaging of targets

Multiple stripe patterns are projected at high speed. Light reflected from the target is analyzed in real time by the ultra-high-speed CMOS imaging sensor and a high-speed processor to generate a 3D image.

2D inspection lighting

Generation of shapes and textures

Take advantage of LumiTraxTM, a vision system solution where analysis is performed using multiple images taken with lighting from different directions in order to generate shape (roughness) and texture (pattern) images.

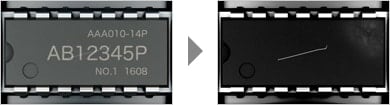

Defect inspection (appearance) for IC molds

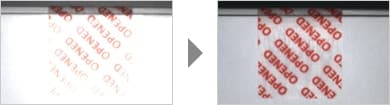

Tape presence inspection (texture)

3D capture mode

Batch extraction of differences by comparing with registered 3D shapes

IC presence detection

3D

OK result image

NG result image

2D

OK result image

NG result image

Switching direction difference check

3D

OK result image

NG result image

2D

OK result image

NG result image

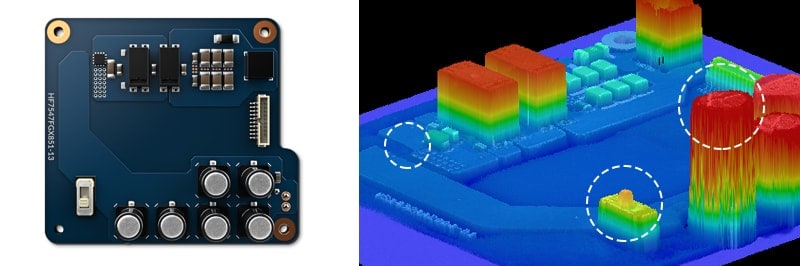

Electrolytic capacitor height check

3D

OK result image

NG result image

2D

OK result image

NG result image
