Checking Mold Conditions
- CASE
- Metal Processing
Check the clamping displacement and pressure of a forging/casting mold on the order of micrometers and record the results.
Connect to IoT
Optimum mold clamping and pressure holding change between different products. Automatic feedback of these values during product changeover saves time.
Centralized management of temperature and oil pressure as well as mold operation enables analysis of the overall behavior.
Related productEX-V Series

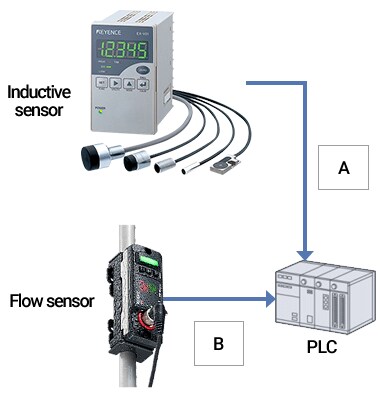

The following data can be obtained.
| Process data | Mold clamping amount/pressure holding condition, oil pressure, judgment output (High, Low, Go), and alarm output |
|---|---|
| Diagnosis service data | Self-diagnosis status of the measurement system (errors, etc.) |
-
- Mold clamping amount
- Pressure holding condition
- Control output status
- Alarm information
-
- Instantaneous flow
- Accumulated flow
- Control output status
- Alarm information
