3D Scanners in the Manufacturing Industry: A Deep Dive into Their Benefits and Applications

Advances in technology continue to reshape the manufacturing landscape, with 3D scanners standing out as essential tools for efficiency and precision. The advent of handheld and portable 3D scanners has revolutionized applications in the manufacturing industry, from general part inspection to defect detection, and even aiding MRO in the aerospace sector. This post explores the benefits of how 3D scanners are transforming the manufacturing industry and their critical use cases.

We’re here to provide you with more details.
Reach out today!

Ask an Expert

Part Inspection: Shape and Dimension Analysis

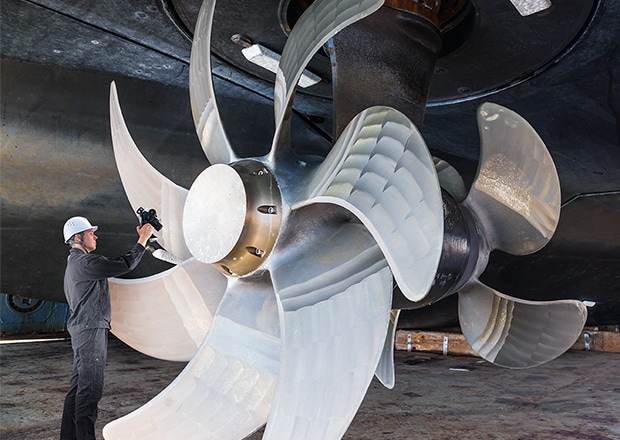

One of the most common applications of 3D scanners in the manufacturing industry is general part inspection, ensuring that components meet stringent quality standards. With their ability to capture precise geometric data, 3D scanners enable manufacturers to:

Verify dimensional accuracy: By scanning a part, manufacturers can compare its dimensions to the original CAD model, ensuring compliance with design specifications.
Inspect complex geometries: Unlike traditional measuring tools, handheld 3D scanners can capture intricate shapes in hard-to-reach areas, making them ideal for parts with elaborate designs.
Streamline quality control: Portable 3D scanners offer the flexibility to conduct on-the-spot inspections and reduce downtime and production delays.

This capability is especially valuable in industries such as automotive and aerospace, where high precision inspection is non-negotiable.

Defect Detection and Wear Analysis

Detecting defects early in the manufacturing process saves both time and money. Portable 3D scanners excel in identifying issues such as:

Cracks, deformations, and misalignments: Advanced 3D scanning systems can pinpoint surface anomalies with high accuracy, allowing engineers to address problems before the part goes any further in the production process.
Wear tracking: In industries with high wear-and-tear components, such as molds and dies, regular scans help monitor degradation over time. This enables predictive maintenance and reduces unexpected equipment failure.

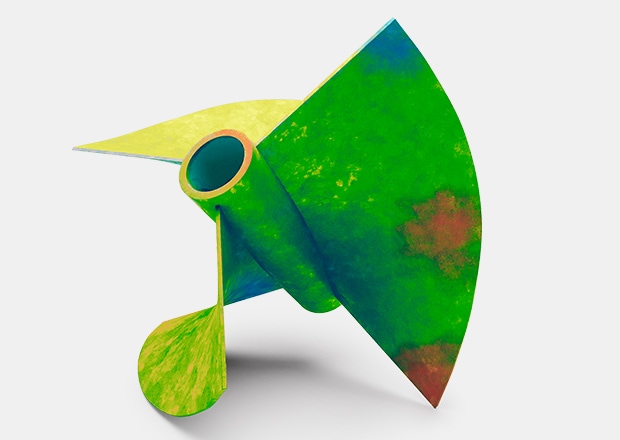

Analyzing Shape, Form, and Warpage: 3D scanners can create heat maps to show highs and lows over a large surface, highlighting warpage and analyzing shape/form data with ease.

For example, in the aerospace industry, 3D scanners are used to assess the wear on turbine blades and landing gear components, ensuring safety and operational efficiency.

3D Model Generation for Reverse Engineering

In cases where original CAD files are unavailable, 3D scanners in the manufacturing industry are indispensable for reverse engineering. They facilitate:

Digital recreation of parts: By scanning an existing object, a 3D scanner generates a precise digital model that can be used for reproduction or modification.
Improving outdated designs: The data captured can also be used to optimize legacy designs for modern manufacturing methods.
Customization and prototyping: Handheld 3D scanners enable rapid prototyping and on-demand customization, reducing the time to market for new products.

This application is particularly crucial in manufacturing processes, where older parts require replacement but lack existing design documentation.

MRO Applications in the Aerospace Industry

The aerospace industry demands exacting standards, and portable 3D scanners have become an integral tool for Maintenance, Repair, and Overhaul (MRO) processes. Key applications include:

Damage assessment: Aircraft often experience dents, cracks, and other damage during operation. 3D scanners provide a detailed analysis, ensuring that repairs meet safety standards.
Component matching: For repairs or part replacements, scanners help confirm that new parts fit seamlessly with existing assemblies.
Efficiency in inspections: With handheld 3D scanners, technicians can perform on-site inspections without dismantling large components, saving time and resources.
PMA Parts Inspection: Parts Manufacturer Approval (PMA) parts are becoming increasingly desired for MRO solutions due to their cost-saving abilities. They’re designed to be functionally equivalent alternatives to OEM parts. Because of this, handheld 3D scanners become a necessity for the rigorous reverse engineering and approval process of PMA parts that ensure they meet the exact same safety, performance, and quality standards that are set for OEM parts.

By integrating 3D scanning into MRO workflows, aerospace companies enhance their ability to maintain safety and compliance while reducing operational costs.

Conclusion

The widespread adoption of handheld and portable 3D scanners is reshaping the manufacturing industry. From improving quality control with shape and dimension analysis to ensuring safety and efficiency in aerospace MRO applications, these tools offer unparalleled versatility and precision. As industries continue to demand higher accuracy and faster workflows, 3D scanners in the manufacturing industry will undoubtedly play an even more critical role in driving innovation and productivity.

By embracing these technologies, manufacturers can stay competitive in a rapidly evolving landscape, ensuring their products meet the highest standards of quality and performance.

Contact us to learn more about how our advanced technology can help take your business to the next level.

Check Out KEYENCE’s Options for a 3D Scanner for Your Manufacturing Process

The KEYENCE WM-6000 Handheld 3D Laser Scanner and CMM is designed as a comprehensive solution for large part inspections.

Accuracy: With a measuring range of up to 82 feet, the WM-6000 delivers exceptional accuracy across its area and includes a touch probe for precise dimensional measurements.

Portability: The handheld scanner probe works seamlessly with a lightweight camera head unit that tracks the probe’s movements within the measurement area. This portable setup enables the system to adapt to various environments, allowing you to scan wherever needed. The software operates directly from the handheld probe, providing unrestricted mobility during the measurement process without the need to return to a computer.

Ease of Use: The WM-6000’s proprietary software supports CAD model imports for overlays and easy export for reverse engineering. With free training included, anyone can quickly become a user without formal training. The software also generates a cleaned model just seconds after scanning a part.

Price Options: KEYENCE offers the WM-6000 in four different models, each at a distinct price point, so you can choose the capabilities that suit your application and budget.

Learn more about the WM-6000 here.
