Stroke

For Individuals Looking for Stroke Measurement Systems

When looking for the best way to measure stroke, there are a number of important factors to consider, including the type of measurement system and the installation environment. Selecting equipment that doesn't adequately meet your needs can lead to insufficient precision and increased man-hours during production, so make sure you choose the right equipment. This site is designed to help those looking for a stroke measurement system discover the best way to perform measurement with confidence.

How to Measure Stroke

Find the best measurement method and the right equipment to measure "Stroke".

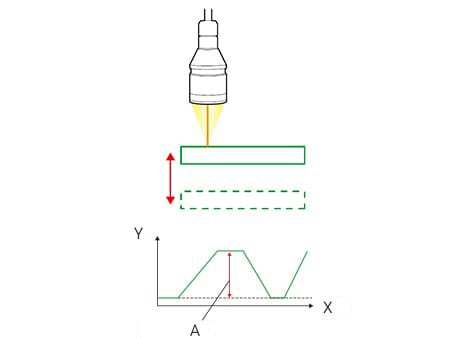

Measurement of stroke from above

Example Application: Stroke measurement of camera modules

Optimal measurement system

Optimal measurement systemReflective Laser Displacement Sensor

The sensor head is installed in the stroke direction to measure the distance to the target.

X
Time
Y
Distance
C
Stroke amount
KEY POINTS
  • The stroke amount can be measured at high speeds with high precision.
  • Models capable of measuring long stroke amounts are also available.
  • Multi-color confocal method
    Linearrity:From ±0.2μm
    Confocal Displacement sensor

    CL Series

    View Catalog

  • Spectral Interference Method
    Ultra-high resolution of 1 nm
    2 mm microprocess sensor head

    SI Series

    View Catalog

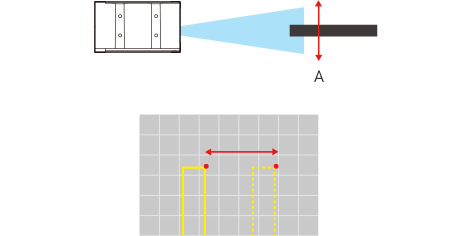

Stroke measurement from the side with a reflectance-type sensor

Example Application: Behavior measurement of seat frames

Optimal measurement system

Optimal measurement systemReflective 2D Laser Displacement Sensor

The stroke amount is measured by reflecting the laser line off of the side of the target side and measuring the position of the target end face.

A
Stroke amount
KEY POINTS
  • Stroke can be measured even if the target surface is not flat.
  • Displacement at multiple positions on the target can be measured simultaneously.
  • 2D Triangulation Method.
    In-line Multi-point measurement.
    World's Fastest sampling rate at 64,000 images/sec.

    LJ-X Series

    View Catalog

  • Multi-color confocal method
    Linearrity:From ±0.2μm
    Confocal Displacement sensor

    CL Series

    View Catalog

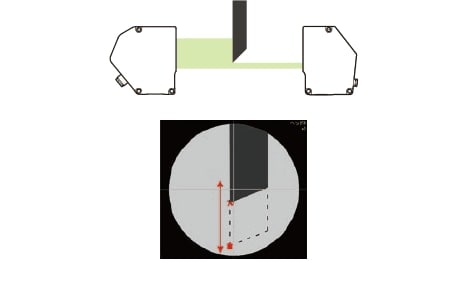

Stroke measurement from the side with a thrubeam-type sensor

Example Application: Behavior measurement of blade edges

Optimal measurement system

Optimal measurement systemThrubeam 2D Optical Micrometer

The stroke amount is measured by finding the position of the specified point using the image obtained using the 2D optical projection method.

KEY POINTS

Stroke amounts can be measured correctly with the position correction function even if the target shifts to the left or right.

  • 2D Telecentric Optical Method. Simultaneous measurement of up to 100 with calibrated high-speed measurement.

    TM-X Series

    View Catalog
