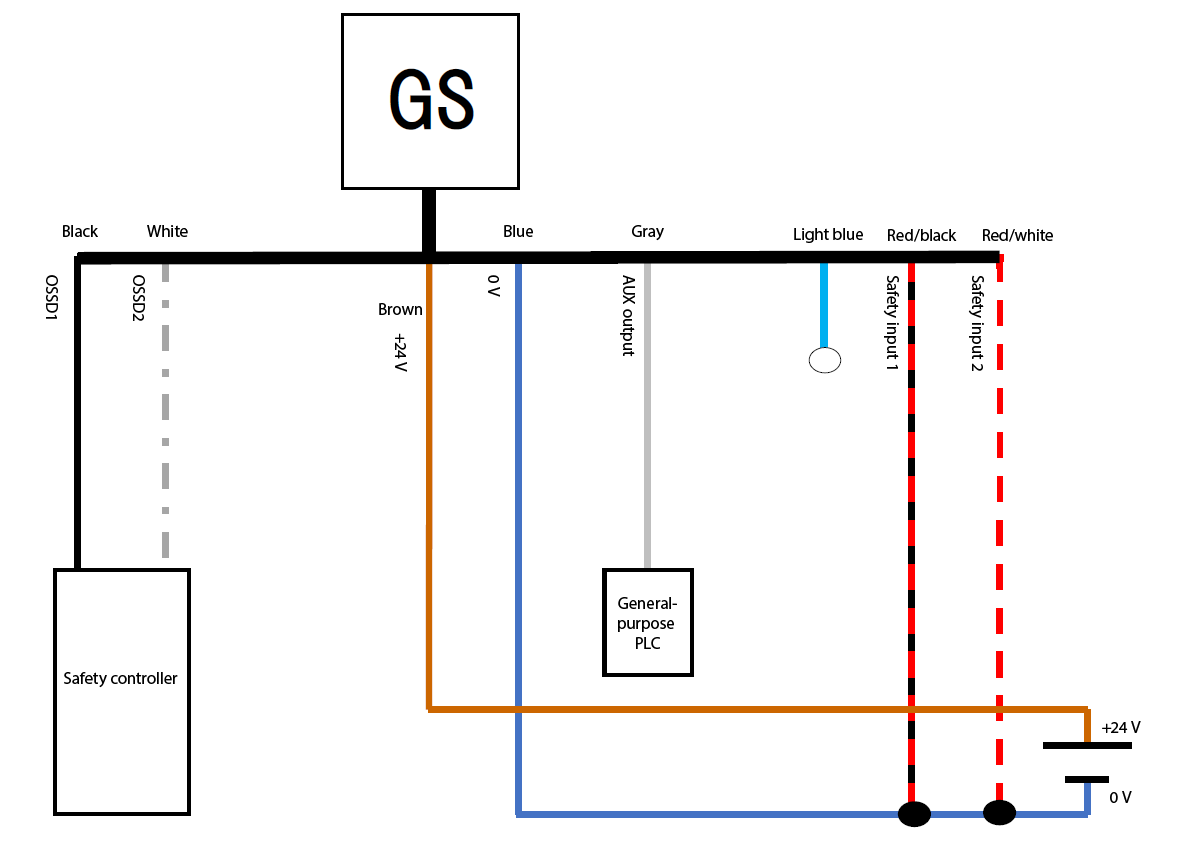

Main Unit Model: GS-11N5, 10
NPN
| OSSD operation | Open/close link mode |
|---|---|
| Interlock function | Automatic only |
| EDM function | N/A |
| Applicable model | Main unit | Cable |
|---|---|---|
| Non-contact type | GS-11N5, 10 | Drawn from the main unit |
| Required | Pin | Color | Icon above | Function |
|---|---|---|---|---|
| 2 | Brown |  |
+24 V | |
| 7 | Blue |  |
0 V | |
| 5 | Black |  |
OSSD1 | |
| 6 | White |  |
OSSD2 | |
| 8 | Red/black |  |
Safety input 1 | |
| 4 | Red/white |  |
Safety input 2 | |
| 1 | Gray |  |
AUX output | |
| 3 | Light blue |  |
Not used |
- The required wiring ensures that operations can be checked without errors.
- Independently insulate any unused wires. Do not bundle them together.
