GS Wiring Example 13

Main Unit Model: GS-51P5, 10/GS-71P5, 10/GS-51PC/GS-71PC
PNP

OSSD operation Lock link mode only
Interlock function Automatic only
EDM function N/A
Applicable model Main unit Cable
Locking type GS-51P5, 10 Drawn from the main unit
GS-71P5, 10 Drawn from the main unit
GS-51PC GS-P8C5, 10
For details on the extension cable, see the catalog.
GS-71PC GS-P8C5, 10
For details on the extension cable, see the catalog.

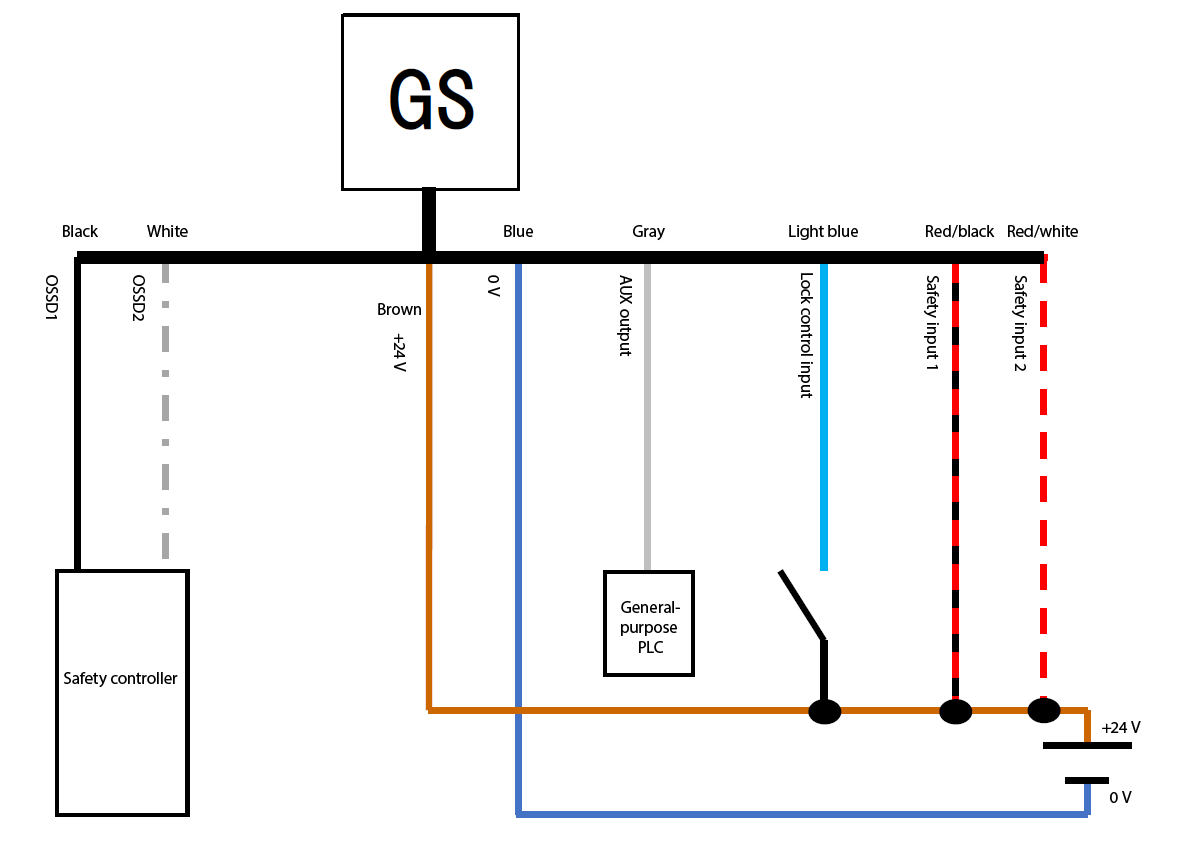

GS - black, white, brown, blue, gray, light blue, red/black, red/white | Safety controller - black, white | General-purpose PLC - gray
Required Pin Color Icon above Function
2 Brown +24 V
7 Blue 0 V
5 Black OSSD1
6 White OSSD2
8 Red/black Safety input 1
4 Red/white Safety input 2
1 Gray AUX output
3 Light blue Lock control input
  • The required wiring ensures that operations can be checked without errors.
  • Independently insulate any unused wires. Do not bundle them together.
