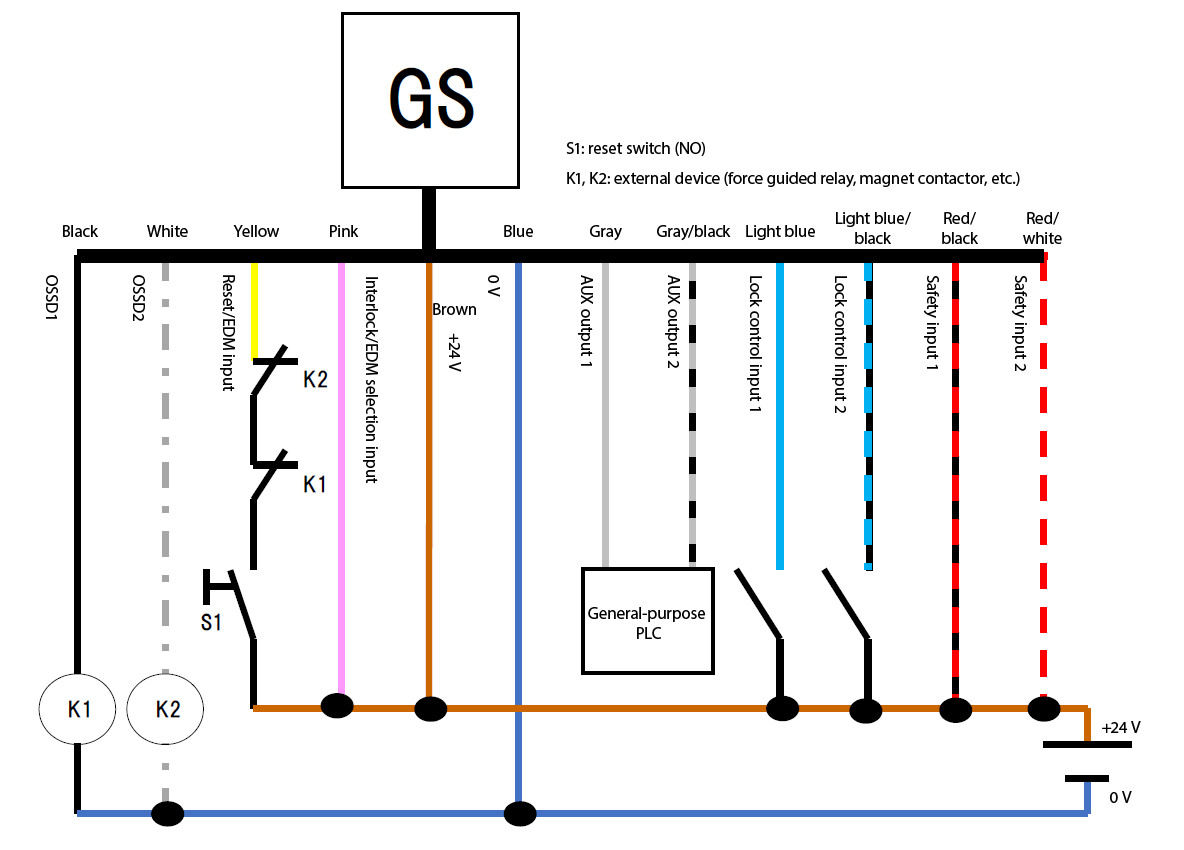

GS Wiring Example 4

Main Unit Model: GS-53PC
PNP

OSSD operation	Lock link mode
Interlock function	Manual
EDM function	Used

Applicable model	Main unit	Cable
Locking type	GS-53PC	GS-P12C5, 10, 20 No extension cable

Required	Pin	Color	Icon above	Function
	1	Brown		+24 V
	3	Blue		0 V
	4	Black		OSSD1
	7	White		OSSD2
	2	Red/black		Safety input 1
	6	Red/white		Safety input 2
	5	Gray		AUX output 1
	9	Gray/black		AUX output 2
	10	Light blue		Lock control input 1
	12	Light blue/black		Lock control input 2
	11	Yellow		Reset/EDM input
	8	Pink		Interlock/EDM selection input
