GS-M Wiring Example 3

Main Unit Model: GS-M51N/GS-M91N/GS-ML51N
NPN

OSSD operation Lock link mode
Interlock function Automatic only
EDM function N/A
Applicable model Main unit
Hinged door, standard type GS-M51N
GS-M91N
Sliding door, standard type GS-ML51N

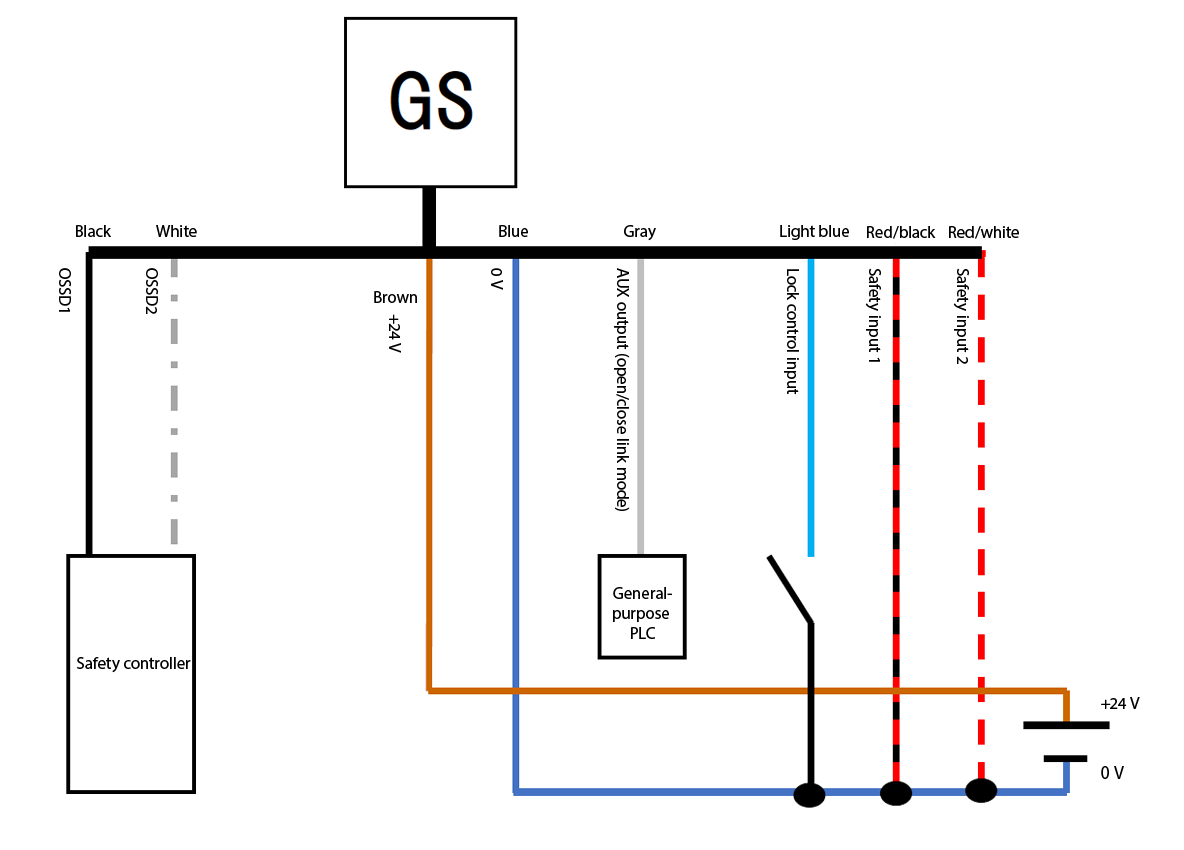

GS - black, white, brown, blue, gray, light blue, red/black, red/white | Safety controller - black, white | General-purpose PLC - gray
Required Pin Color Icon above Function
2 Brown +24 V
7 Blue 0 V
5 Black OSSD1
6 White OSSD2
8 Red/black Safety input 1
4 Red/white Safety input 2
1 Gray AUX output (open/close link mode)
3 Light blue Lock control input
  • The required wiring ensures that the unit can be operated without entering the error state.
  • Independently insulate any unused wires. Do not bundle them together.
