GL-R Wiring Example 26

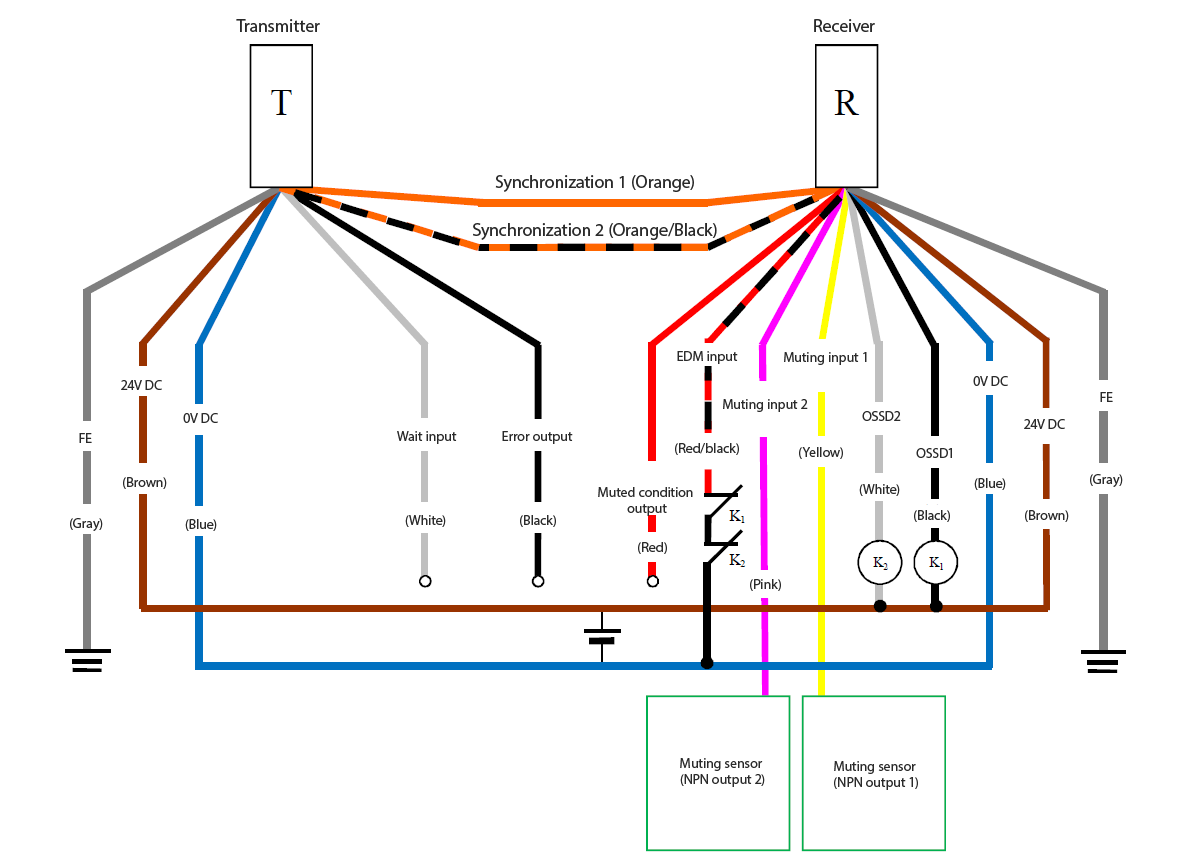

NPN Wiring System: Wire Synchronization System (Transmitter: 7-Core Cable, Receiver: 11-Core Cable)

Settings must be configured via software.

EDM Used
Start/Restart interlock Automatic
Muting Used
Transmitter cable 7 cores Example) GL-RP5NS
Receiver cable 11 cores Example) GL-RP5NM
Transmitter (T) - Gray (FE), Brown (24 VDC), Blue (0 VDC), White (Wait input), Black (Error output), Orange/Black (Synchronization 2), Orange (Synchronization 1) | Receiver (R) - Orange (Synchronization 1), Orange/Black (Synchronization 2), Red (Muted condition output), Red/Black (EDM input), Pink (Muting input 2), Yellow (Muting input 1), White (OSSD2), Black (OSSD1), Blue (0 VDC), Brown (24 VDC), Gray (FE) | K1 - Black (OSSD1) | K2 - White (OSSD2) | White (OSSD2), Black (OSSD1) - Brown (24 VDC) | Red/Black (EDM input) - K1 - K2 - Blue (0 VDC) | Muting sensor (NPN output 1) - Yellow (Muting input 1) | Muting sensor (NPN output 2) - Pink (Muting input 2)
  • Independently insulate any unused wires. Do not bundle them together.

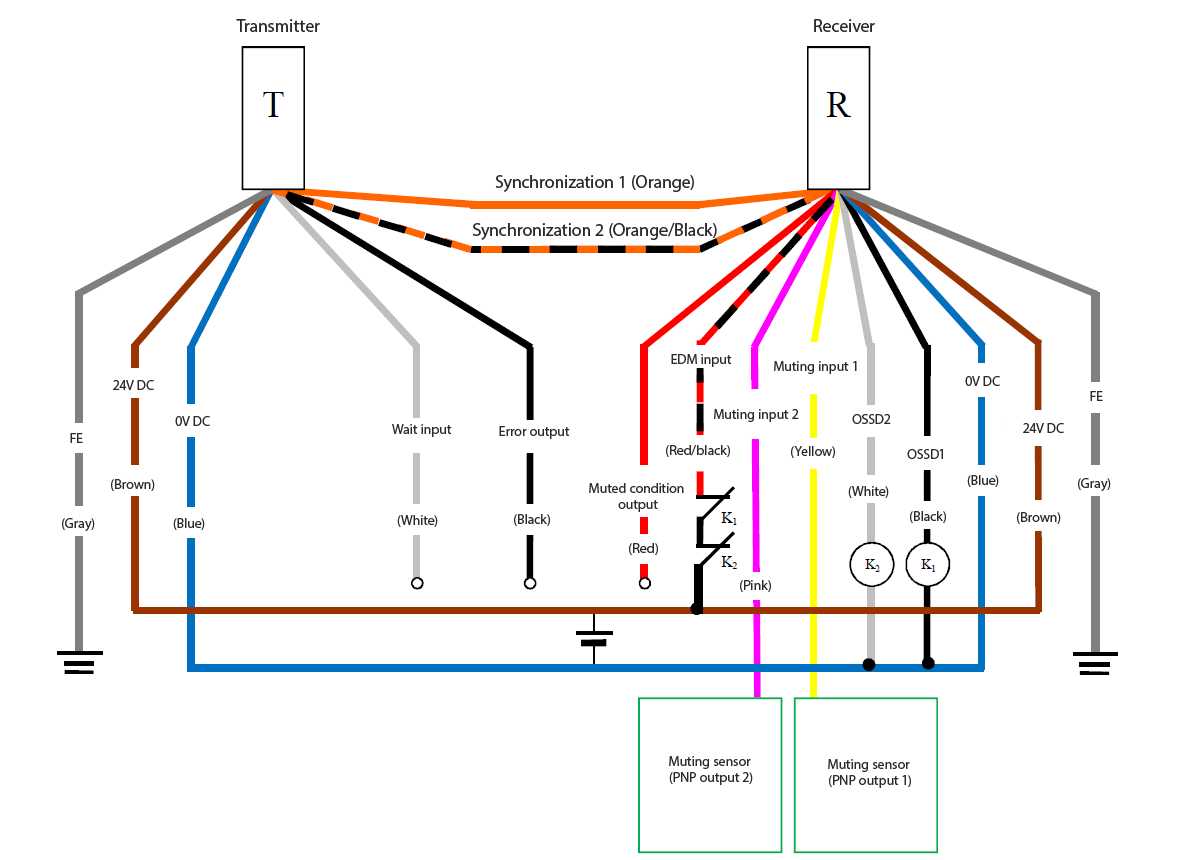

PNP Wiring System: Wire Synchronization System (Transmitter: 7-Core Cable, Receiver: 11-Core Cable)

Settings must be configured via software.

EDM Used
Start/Restart interlock Automatic
Muting Used
Transmitter cable 7 cores Example) GL-RP5PS
Receiver cable 11 cores Example) GL-RP5PM
Transmitter (T) - Gray (FE), Brown (24 VDC), Blue (0 VDC), White (Wait input), Black (Error output), Orange/Black (Synchronization 2), Orange (Synchronization 1) | Receiver (R) - Orange (Synchronization 1), Orange/Black (Synchronization 2), Red (Muted condition output), Red/Black (EDM input), Pink (Muting input 2), Yellow (Muting input 1), White (OSSD2), Black (OSSD1), Blue (0 VDC), Brown (24 VDC), Gray (FE) | K1 - Black (OSSD1) | K2 - White (OSSD2) | White (OSSD2), Black (OSSD1) - Blue (0 VDC) | Red/Black (EDM input) - K1 - K2 - Brown (24 VDC) | Muting sensor (PNP output 1) - Yellow (Muting input 1) | Muting sensor (PNP output 2) - Pink (Muting input 2)
  • Independently insulate any unused wires. Do not bundle them together.

Software Setup

Settings must be configured via software.

EDM Used
Start/Restart interlock Automatic
Muting Used

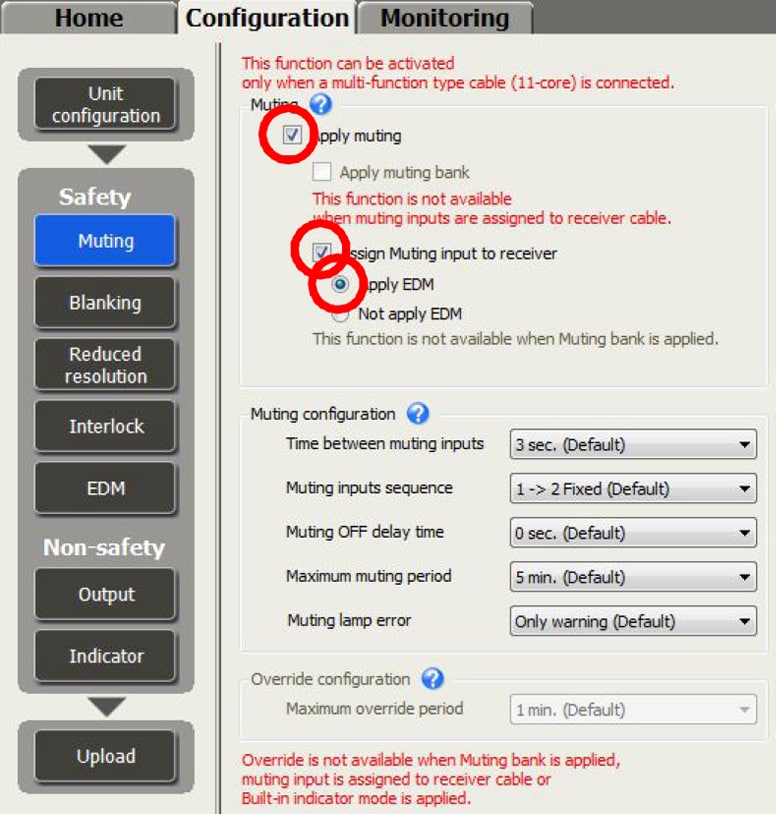

Muting

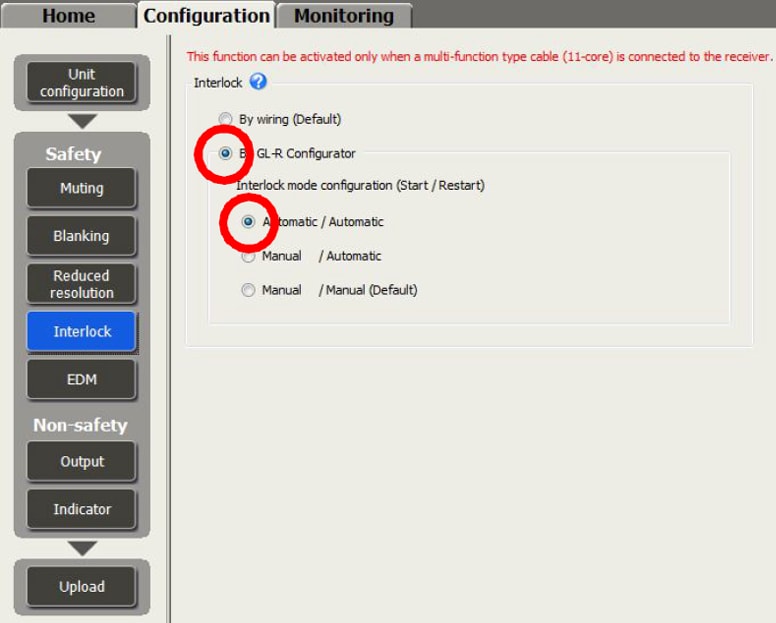

Start/Restart Interlock

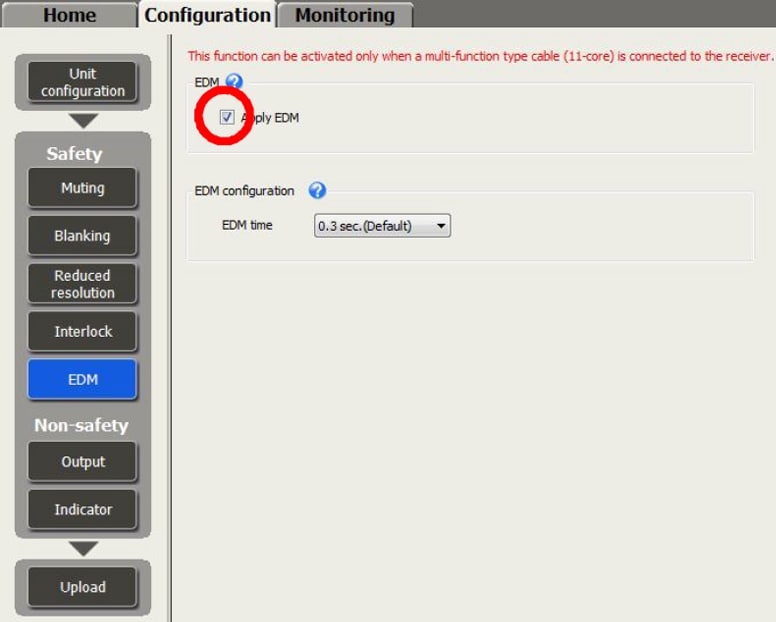

EDM
