GL-R Wiring Diagram Navigator

GL-R Wiring Example 18

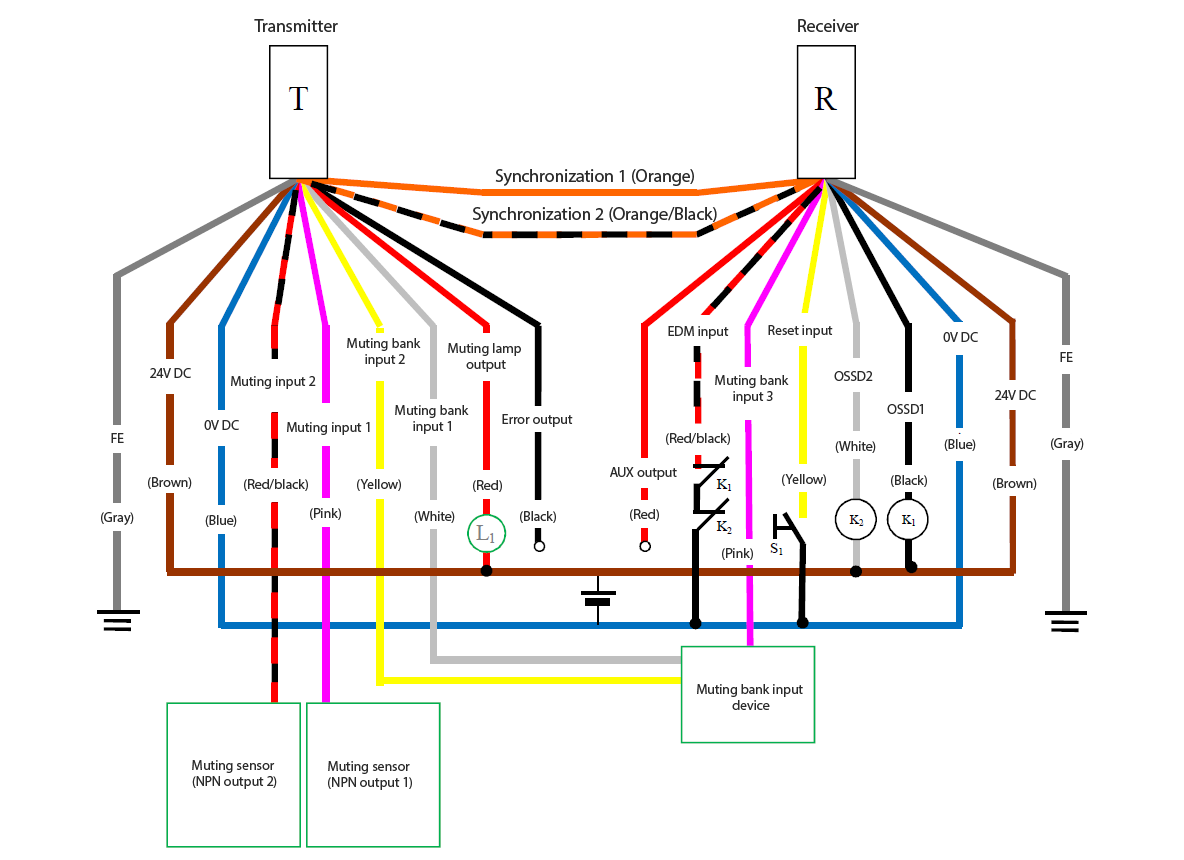

NPN Wiring System: Wire Synchronization System (Transmitter: 11-Core Cable, Receiver: 11-Core Cable)

Settings must be configured via software.

EDM Used
Start/Restart interlock Manual
Muting Used
Muting bank Used
Transmitter cable 11 cores Example) GL-RP5NM
Receiver cable 11 cores Example) GL-RP5NM
Transmitter (T) - Gray (FE), Brown (24 VDC), Blue (0 VDC), Red/Black (Muting input 2), Pink (Muting input 1), Yellow (Muting bank input 2), White (Muting bank input 1), Red (Muting lamp output), Black (Error output), Orange/Black (Synchronization 2), Orange (Synchronization 1) | Receiver (R) - Orange (Synchronization 1), Orange/Black (Synchronization 2), Red (AUX output), Red/Black (EDM input), Pink (Muting bank input 3), Yellow (Reset input), White (OSSD2), Black (OSSD1), Blue (0 VDC), Brown (24 VDC), Gray (FE) | Yellow (Reset input) - S1 - Blue (0 VDC) | Muting sensor (NPN output 1) - Pink (Muting input 1) | Muting sensor (NPN output 2) - Red/Black (Muting input 2) | Red/Black (EDM input) - K1 - K2 - Blue (0 VDC) | K1 - Black (OSSD1) | K2 - White (OSSD2) | Muting bank input device - White (Muting bank input 1), Yellow (Muting bank input 2), Pink (Muting bank input 3) | L1 - Red (Muting lamp output) | Red (Muting lamp output) - Brown (24 VDC) | White (OSSD2), Black (OSSD1) - Brown (24 VDC)
  • Independently insulate any unused wires. Do not bundle them together.

PNP Wiring System: Wire Synchronization System (Transmitter: 11-Core Cable, Receiver: 11-Core Cable)

Settings must be configured via software.

EDM Used
Start/Restart interlock Manual
Muting Used
Muting bank Used
Transmitter cable 11 cores Example) GL-RP5PM
Receiver cable 11 cores Example) GL-RP5PM
Transmitter (T) - Gray (FE), Brown (24 VDC), Blue (0 VDC), Red/Black (Muting input 2), Pink (Muting input 1), Yellow (Muting bank input 2), White (Muting bank input 1), Red (Muting lamp output), Black (Error output), Orange/Black (Synchronization 2), Orange (Synchronization 1) | Receiver (R) - Orange (Synchronization 1), Orange/Black (Synchronization 2), Red (AUX output), Red/Black (EDM input), Pink (Muting bank input 3), Yellow (Reset input), White (OSSD2), Black (OSSD1), Blue (0 VDC), Brown (24 VDC), Gray (FE) | Yellow (Reset input) - S1 - Brown (24 VDC) | Muting sensor (PNP output 1) - Pink (Muting input 1) | Muting sensor (PNP output 2) - Red/Black (Muting input 2) | Red/Black (EDM input) - K1 - K2 - Brown (24 VDC) | K1 - Black (OSSD1) | K2 - White (OSSD2) | White (OSSD2), Black (OSSD1) - Blue (0 VDC) | Muting bank input device - White (Muting bank input 1), Yellow (Muting bank input 2), Pink (Muting bank input 3) | L1 - Red (Muting lamp output) | Red (Muting lamp output) - Brown (24 VDC)
  • Independently insulate any unused wires. Do not bundle them together.

Software Setup

Settings must be configured via software.

EDM Used
Start/Restart interlock Manual
Muting Used
Muting bank Used

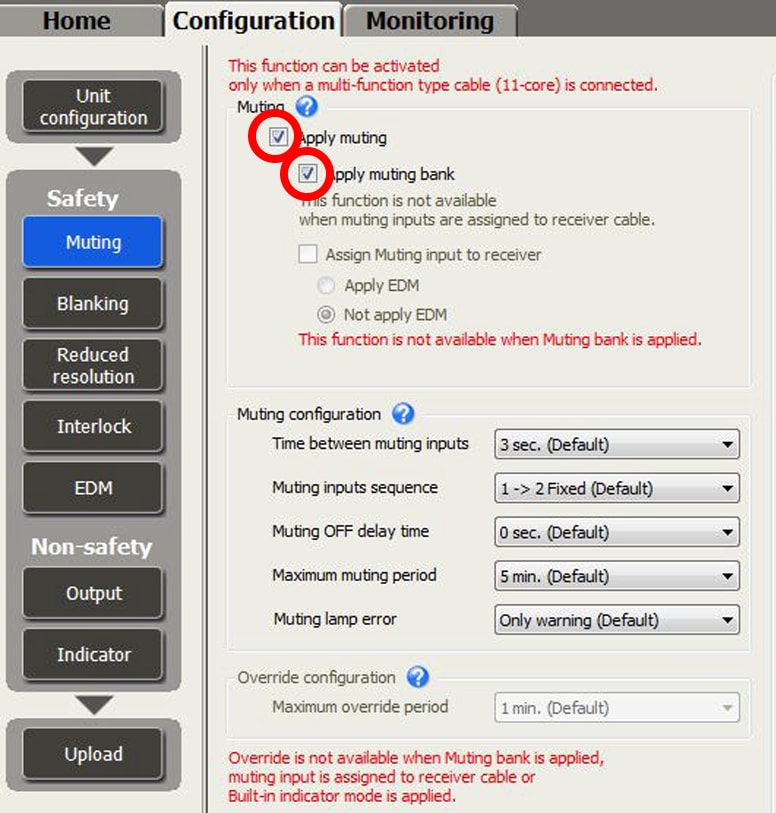

Muting

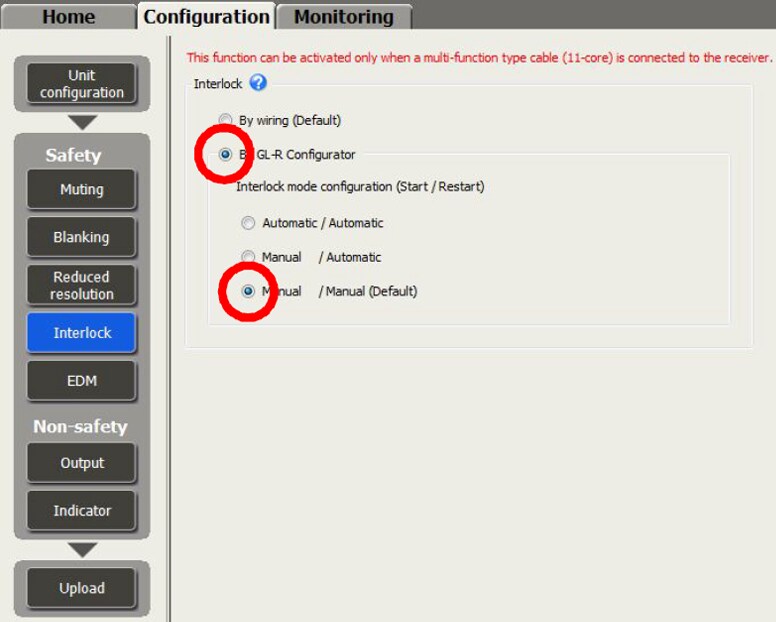

Start/Restart Interlock

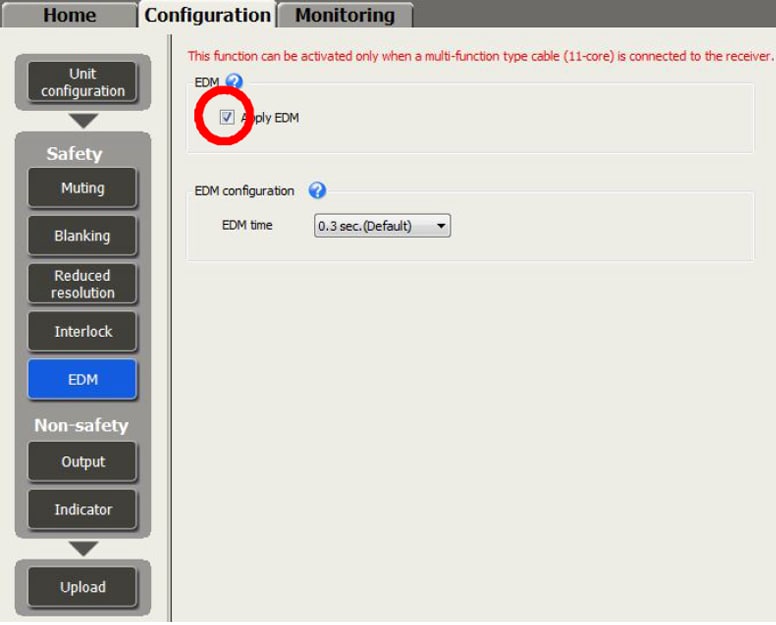

EDM
