3D Optical Profilometers

Roughness, Texture, and Film Thickness Measurement

3D Optical Profiling Microscope VK-X4000

Wide-Area Optical Profiler VR-6000

	VK-X4000	VR-6000
Magnification	42× - 28,800×	12× - 160×
Height (Z) Resolution	0.01 nm	0.1 µm
XY Resolution	0.12 µm	0.5 µm
Measurement Method(s)	Laser Confocal, Interferometry, Focus Variation, Spectral Interference	White Light LED Fringe Projection
Film Thickness	Yes	No
Surface Roughness	Yes	Yes
NIST Traceable	Yes	Yes
Max Measurement Area	100 mm × 100 mm	300 mm × 150 mm
Gantry Compatible	Yes	Yes

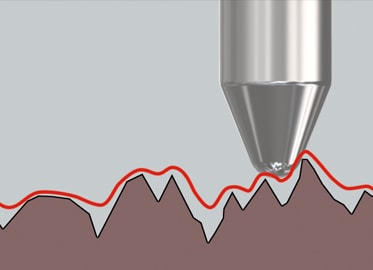

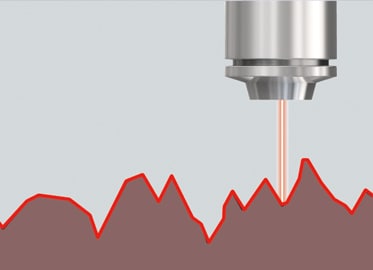

Non-contact 3D measurement on any material

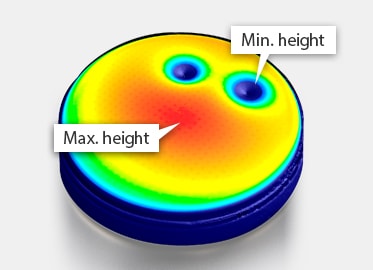

One-click, full 3D surface analysis

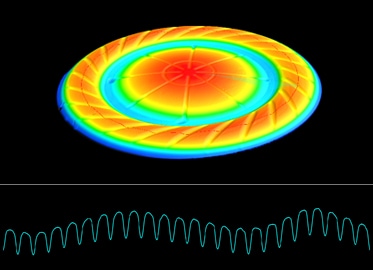

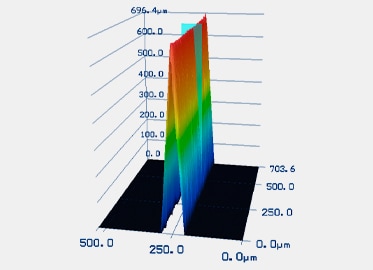

Measure any shape, including steep slopes

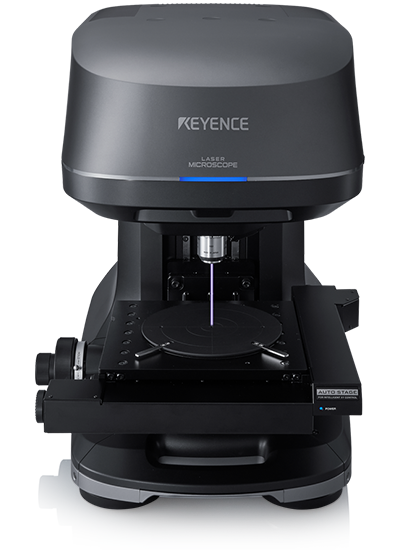

3D Optical Profiling Microscope
VK-X4000

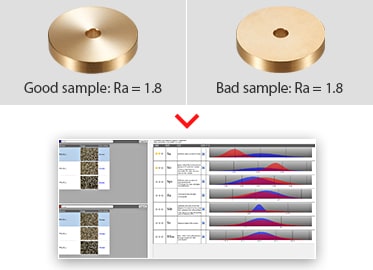

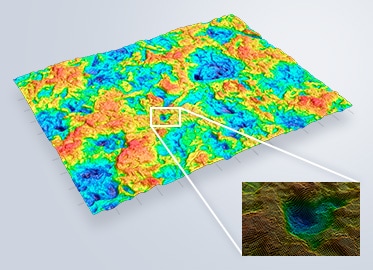

Capture full surface data

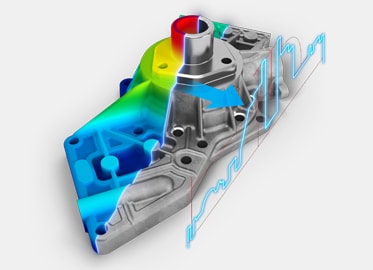

Measure 3D changes over a large area

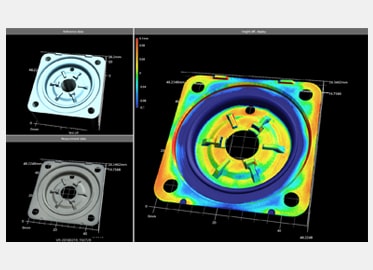

Compare scan data against CAD model

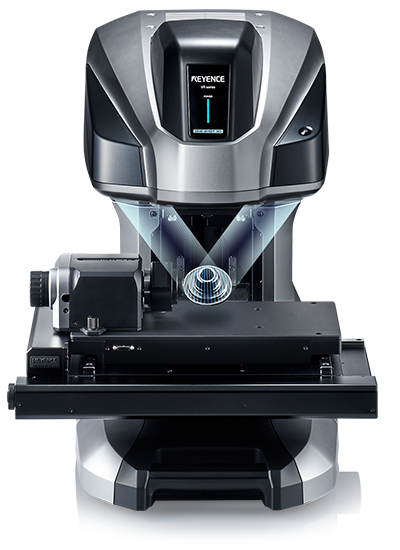

Wide-Area Optical Profiler
VR-6000

Decades of Proven Expertise

Innovating since 1974, trusted by over 350,000 clients.
Global Reach, Local Support

250 offices in 46 countries, with engineers ready to help on-site.
Unmatched Speed and Reliability

Same-day shipping and direct technical support to keep you moving.

Learn more in the catalog

3D Optical Profiling Microscope VK-X4000 Series

Wide-Area Optical Profiler VR-6000 Series
