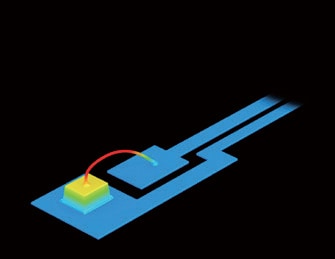

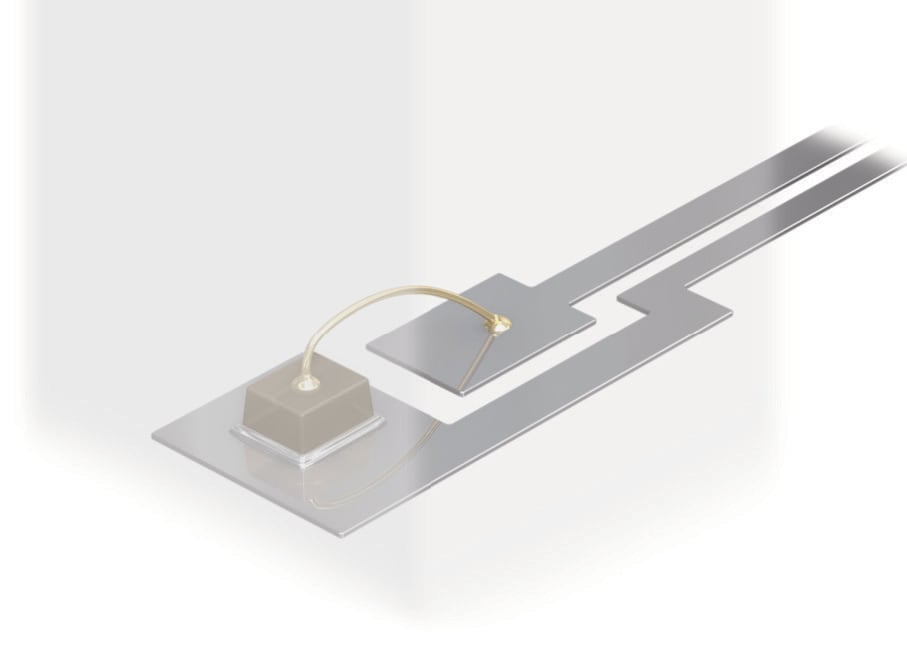

Loop height measurement of aluminum bonding

The WI-5000 can measure the height and loop shape of bonding wires by emitting light from above the target. The diameter of the bump in the bonded part can also be measured through the use of the XY measurement tool.
