Rivet dimension measurements

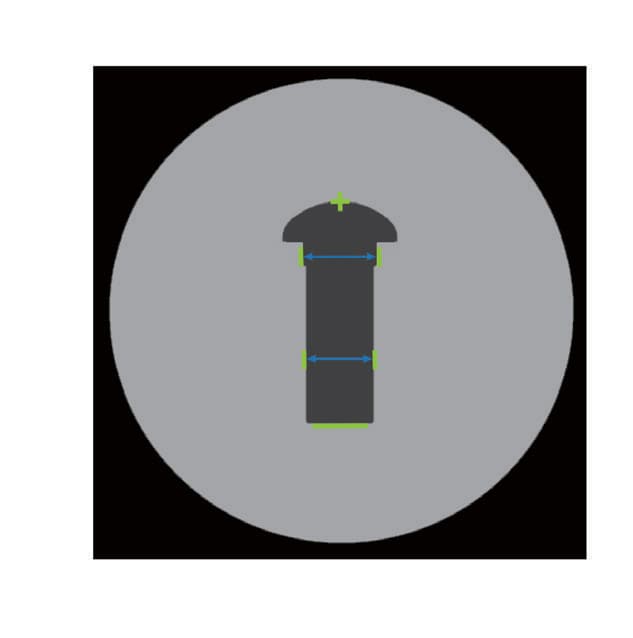

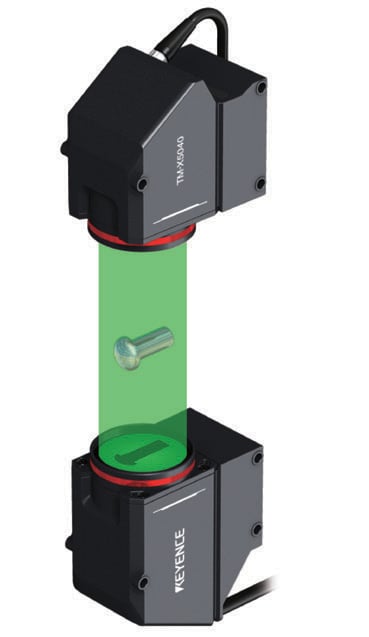

Rivet dimensional measurements are typically performed with 2D measurement sensors. Since rivets are small and have complicated shapes, it has always been difficult to deal with positioning and the tilt of rivets with conventional outer diameter measuring instruments. The TM-X5000 Series has a position correction function and an alignment adjustment function, so it can be used to perform stable measurements regardless of tilt and positioning.
