What is an FFT Spectrum Analyzer?

Spectrum analyzers help provide in-depth analysis of the strength of a signal at each frequency level. By tracking changes in the strength of different signals, engineers and scientists can monitor equipment health, predict maintenance needs, improve systems, and handle other applications.

An FFT spectrum analyzer offers distinct advantages over other types of analyzers in terms of speed, efficiency, versatility, and high resolution.

How FFT Spectrum Analyzers Work

An FFT-based spectrum analyzer converts time-domain signals into the frequency domain, enabling more detailed analysis. Here's a breakdown of the process:

Signal Acquisition: The analyzer receives signals from sensors or data acquisition devices.
Analog-to-Digital Conversion (ADC): If the signal is analog (e.g., temperature, humidity, pressure, vibrations), it's converted to digital.
Sampling: The analog signal is sampled at a specific rate to create a discrete digital signal.
Windowing: A window sequence is applied to improve frequency analysis accuracy. Different types of windows allow for better visualization of the data.
FFT Application: The FFT algorithm is used to compute frequency information.
Analysis: Frequency-domain signals allow deeper investigation compared to time-domain signals.

We’re here to provide you with more details.
Reach out today!

Ask an Expert

Key Applications of FFT Spectrum Analyzers

FFT spectrum analyzer systems are used in different applications across many fields. The ability to work with data in the frequency domain helps when it comes to analyzing and monitoring signals. Results and insights acquired from FFT analysis can be used to solve problems, test prototypes, optimize designs, monitor machinery, and do a host of other things.

FFT analyzers are used in the following:

Durability testing
Temperature and pressure monitoring
Predictive maintenance of industrial machinery
Combustion analysis
Brake noise testing
Vibration testing

Discover more about this product.
Click here to book your demo.

Experience Demo / Test

Benefits of Real-Time FFT-Based Spectrum Analysis

Real-time FFT spectrum analysis offers key benefits to scientists and engineers, including:

Immediate Insights: Real-time analysis helps quickly identify and address issues.
Real-World Monitoring: Temperature readings and machine vibrations can signal part replacement needs or design flaws.
Prevent Downtime: Continuous monitoring detects potential failures, allowing for planned shutdowns.
Optimization: Engineers can monitor systems, detect issues early, troubleshoot, and optimize processes in real time.

Curious about our pricing?
Click here to find out more.

Price

Explore KEYENCE DAQ for FFT Spectrum Analyzer Solutions

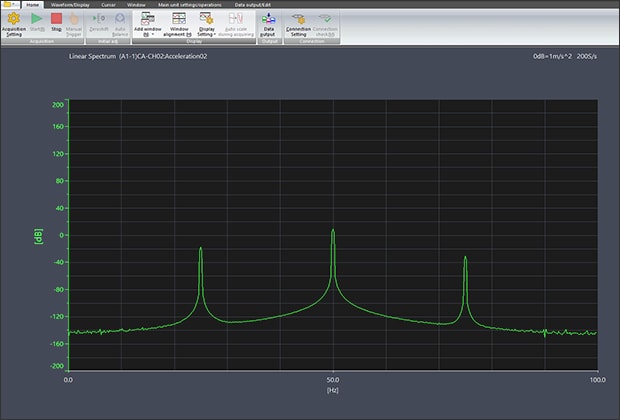

KEYENCE offers powerful data acquisition (DAQ) devices for measuring various analog parameters along with FFT calculations and graphs. The Data Logger NR-X supports eight measurement units, such as temperature, pressure, and vibration, and is used in applications like automotive parts testing and PCB inspections. Additionally, the DAQ NR-500 provides advanced logging functions and direct PC connectivity.

For more information on KEYENCE DAQ systems, contact us today.
