Handheld Code Reader
HR-70 series
Handheld Code Reader HR-70 series
New
Compact and Rugged —
Drop Resistance: 2.0 m (6.6′)
Take advantage of long-term usability with a rugged, robust design. In addition to a drop resistance of 2.0 m (6.6′) and repeated drop resistance of 20,000 drops, the HR-70 Series was designed to withstand more than 10 million trigger actions and 100,000 cable bends for reliable use with minimal wear and tear. High-speed reading of challenging codes, and high-speed, high-capacity data transfers greatly improve work efficiency. A wide range of peripheral equipment and advanced software allow for easy usability in any situation with significantly easier installation and operation.
Features
Robust Design for Long-Term Usability
Highly Resistant to Impacts From Drops
Designed to withstand a variety of impacts, the robust HR-70 Series eliminates the most common causes of failure, ensuring reliable long-term usability.
The rugged design is capable of withstanding drops from 2 m (6.6′) as well as 20,000 repeated impacts from 30 cm (11.81″).
Reliable with Minimal Wear and Tear
The HR-70 Series was designed with careful consideration for the causes of failure for parts prone to breaking, ensuring reliable long-term usability.
Trigger Actions: 10 Million
Cable Bends: 100,000
High-Speed Performance for Improved Work Efficiency
Take advantage of fast reading of all kinds of codes to improve work efficiency.
High-Speed Reading of Challenging Codes
High-speed reading is possible with challenging codes, including codes behind plastic wrapping and distorted or dirty codes.
High-Speed, High-Capacity Data Transfer
Even codes with lots of information can be instantly imported and quickly transferred to a PC, significantly decreasing input times and increasing efficiency.
Fast Reading of Codes on LCD Screens
Codes on LCD screens can be easily read for applications such as barcode payments and point accumulation apps.
Wide Range of Peripheral Equipment and Advanced Software
Easy to Use in Any Situation
Significantly improve reading speed with a wide range of peripheral equipment that enables flexible usability in any application.
Flexible arm stand
Fixed stand
Drop-resistant finger holder
Wall-mounted holder
Advanced Software
KEYENCE offers convenient software that makes installation and operation significantly easier, freeing up time for other tasks.

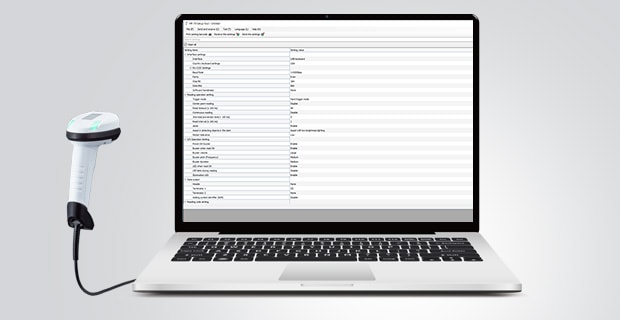

HR-70 Setup Software
Easily configure code reading settings for multiple devices.

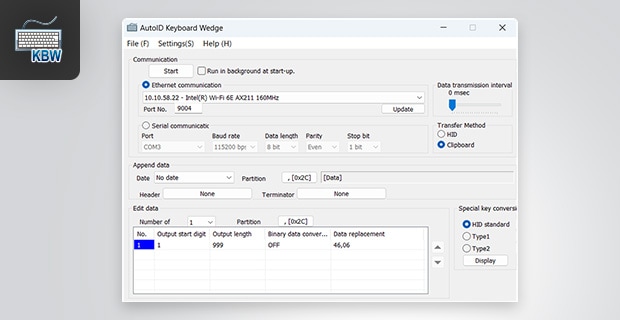

AutoID Keyboard Wedge
Automatically convert code reader data via serial communication to keyboard output. AutoID Keyboard Wedge allows for quick text input and clipboard input, and editing of read data.
