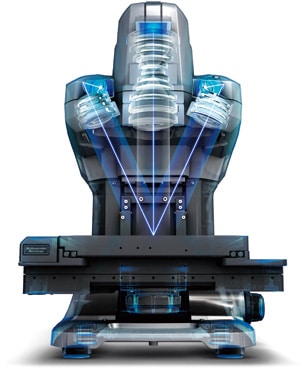

Fast 3D measurement of large areasIntroducing the new VR-3200 One-Shot 3D Measuring Macroscope

Download Catalog

What is the VR Series?
The VR Series is a 3D measuring macroscope offering 3D surface measurements in as little as 4 seconds.
In addition to being able to output three-dimensional surfaces like 3D scanners and 3D digitizers, the VR Series offers incredible accuracy and impressive measuring speeds. Just focus and press the button for incredibly easy three-dimensional measurement.

＜Features of the new 3D measuring macroscope＞Captures a 3D shape in as little as 4 seconds with a resolution of 0.1 μm. * Reference scale 0.1 μm

Acquires measurement data at 800,000 points in as little as four seconds with a working distance of 75 mm. This shortens the time required for sample positioning and measurement, while also giving a more accurate depiction of the surface topography.

Bearing
Fracture surface of metal (ductility)

Download Catalog

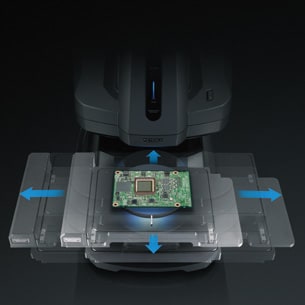

＜Large area 3D measurements improve analysis efficiency＞High-speed motorized XY stage covers 200 mm x 100 mm

Accurately analyze curvature, contour, shape, etc. over an entire object to gain insights that localized measurements cannot provide.

Tool blade edge
Dental arch

Download Catalog

＜A broad range of analysis functions＞

Template for repeated measurements

Automatic position correction

Profile
Comparative measurement of acceptable and defective products

Roughness
CAD data output

Volume and surface area
Report creation

Radius, angle, height difference

RECOMMENDED ITEMS

VR Series Wide-Area 3D Measurement System Catalog

To automatically identify the width and height of the target, just place it on the stage. This is the catalog for the VR Series of wide-area 3D measurement systems, which provide non-contact measurements of the 3D shapes, curvature, and roughness of entire surfaces over a large area in just 1 second.

[File type]PDF:7.03MB
