TM-3000 2D Measurement System

2D Measurements with Micron Precision
- Calibrated and traceable measurement
- Sub-pixel processing for the highest precision
- Dual telecentric optical system
- Up to 16 simultaneous dimensional checks
- Download Catalog

How does the TM-3000 work?

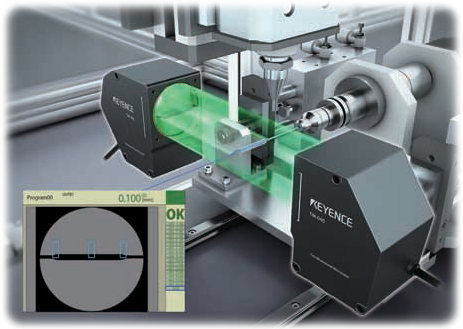

Light is cast through telecentric lenses onto a 2D CMOS. When a target is placed in that light, a shadow is cast. The TM-3000 measures dimensions of that shadow with high precision.
What measurements can be taken?

The variety of measurement modes available make setting up inspections for diameter, width, angles, distance, radius, or pitch quick and easy.

What materials can be measured?

Anything that can cast a shadow can be measured accurately, including traditionally difficult materials to inspect such as rubber, shiny metals, and even glass.
Why do people use the TM-3000?

It's a calibrated system that helps reduce inspection time while increasing reliability in a lab or in-line. Get micron precision without worrying about fixtures or external lighting.

Clear Tube
Turned Parts
Glass Bottles
Drill Bits

WHY KEYENCE?

KEYENCE has been an industry leader in sensing technology since 1974. KEYENCE's direct sales team visits customers with live demo equipment to find the best possible solution for all applications.

Click below to learn more about the TM-3000!
